Spring Boot 項目使用 Swagger/OpenAPI

1 OpenAPI 簡介
- 1.1 API-first 開發方式
- 1.2 Cloud platforms 對 OpenAPI Specification 既支援
2 動手寫
3 測試
4 筆記
- 4.1 OpenAPI generator Maven plugin 配置
  - 4.1.1 OpenAPI generator Maven plugin - interfaceOnly
  - 4.1.2 OpenAPI generator Maven plugin - delegatePattern
- 4.2 OpenAPI Specification fields
5 參考資料

1 OpenAPI 簡介

OpenAPI Specification（OAS）係由 Swagger Specification 演變出黎既一套 HTTP API 格式規範，係開發者之間表達 HTTP APIs 既其中一個標準。

喺 2015，SmartBear 公司收購左開源既 Swagger Specification，然後喺 2015 年年尾，SmartBear 將 Swagger Specification 捐左畀 Linux Foundation 旗下既 OpenAPI Initiative 公司，亦將佢改名成 OpenAPI Specification，亦即係 Swagger 2.0 ➜ OpenAPI 3.0.0。

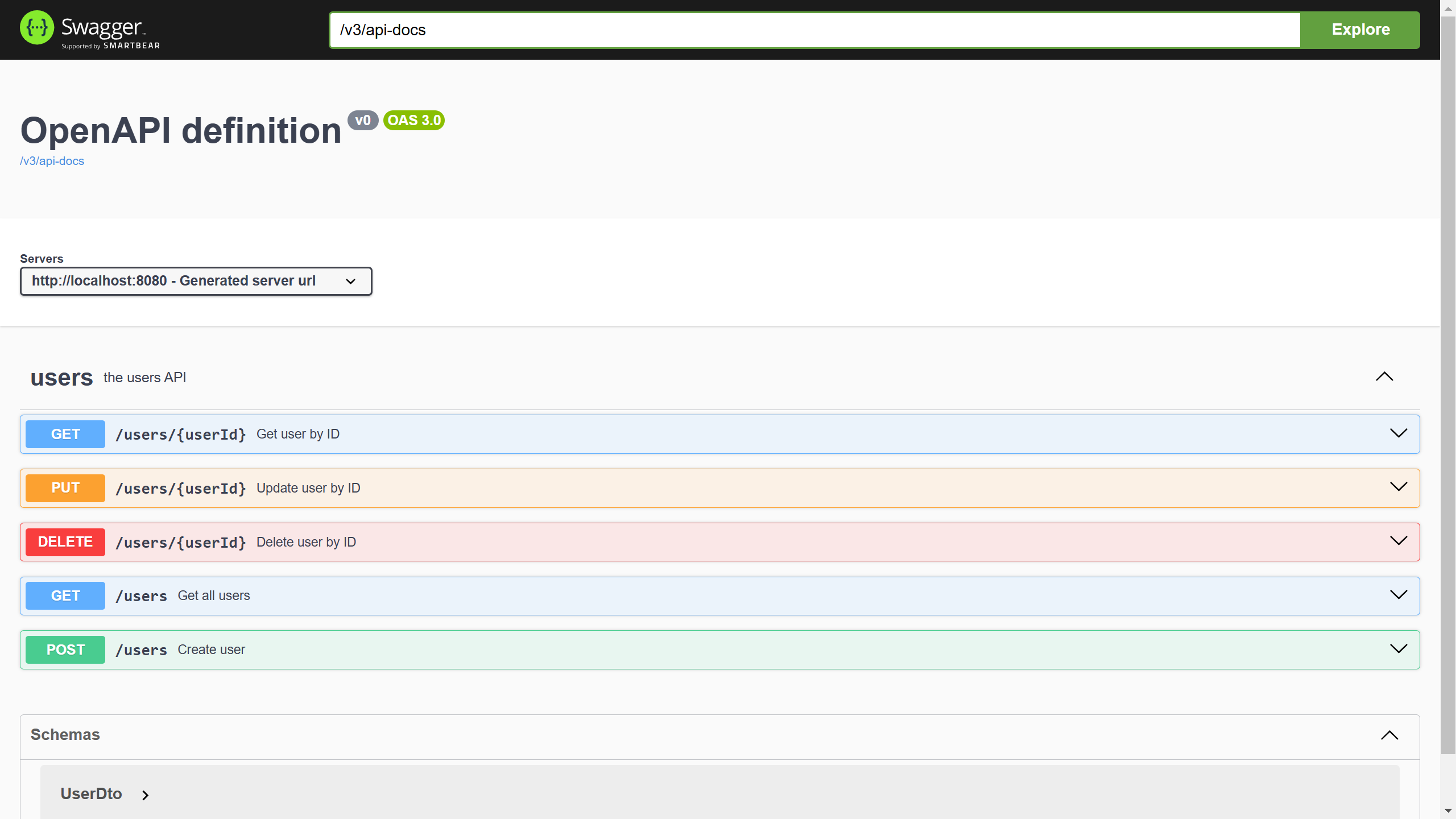

至於 Swagger UI 就係一個工具，準確黎講係一個網頁既介面，畀我地好容易咁測試到我地寫既 HTTP endpoints。

1.1 API-first 開發方式

API-first 就係以 API 主導既開發方式，我地會先寫 API contract，亦即係 Swagger/OpenAPI Specification，然後再寫 code。

1.2 Cloud platforms 對 OpenAPI Specification 既支援

以下係熱門既 cloud platforms 既 API import 功能支援既 OpenAPI Specification 版本：

Cloud platforms	支援既 OpenAPI Specification 版本
Amazon AWS API Gateway	`2.0`、`3.0`
Microsoft Azure API Management	`2.0`、`3.0`、`3.1`
Google Cloud API Gateway	`2.0`
Alibaba Cloud API Gateway	`2.0`、`3.0`

參考資料：

2 動手寫

我地會寫一個有齊曬模擬既 CRUD endpoints 既 Spring Boot MVC 項目。

2.1 Maven dependencies

1<?xml version="1.0" encoding="UTF-8"?>
2<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
3	<modelVersion>4.0.0</modelVersion>
4
5	<groupId>com.michael</groupId>
6	<artifactId>Spring-Boot-3-OpenAPI-Code-Gen-MVC-Demo</artifactId>
7	<version>1.0.0</version>
8	<packaging>jar</packaging>
9
10	<name>Spring-Boot-3-OpenAPI-Code-Gen-MVC-Demo</name>
11	<description>Spring-Boot-3-OpenAPI-Code-Gen-MVC-Demo</description>
12
13	<properties>
14		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
15		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
16		<java.version>17</java.version>
17		<javac.source>17</javac.source>
18		<javac.target>17</javac.target>
19		<maven.compiler.target>17</maven.compiler.target>
20		<maven.compiler.source>17</maven.compiler.source>
21
22		<start-class>code.MainApplication</start-class>
23	</properties>
24
25	<parent>
26		<groupId>org.springframework.boot</groupId>
27		<artifactId>spring-boot-starter-parent</artifactId>
28		<version>3.2.5</version>
29	</parent>
30
31	<dependencies>
32		<dependency>
33			<groupId>org.springframework.boot</groupId>
34			<artifactId>spring-boot-starter-web</artifactId>
35		</dependency>
36
37		<!-- Swagger UI -->
38		<dependency>
39			<groupId>org.springdoc</groupId>
40			<artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
41			<version>2.5.0</version>
42		</dependency>
43
44		<!-- OpenAPI generator Maven plugin 會生成用到佢既 Java code -->
45		<dependency>
46			<groupId>org.openapitools</groupId>
47			<artifactId>jackson-databind-nullable</artifactId>
48			<version>0.2.6</version>
49		</dependency>
50
51		<dependency>
52			<groupId>net.logstash.logback</groupId>
53			<artifactId>logstash-logback-encoder</artifactId>
54			<version>7.4</version>
55		</dependency>
56
57		<dependency>
58			<groupId>org.apache.commons</groupId>
59			<artifactId>commons-lang3</artifactId>
60		</dependency>
61
62		<dependency>
63			<groupId>org.projectlombok</groupId>
64			<artifactId>lombok</artifactId>
65			<scope>provided</scope>
66		</dependency>
67	</dependencies>
68
69	<build>
70		<plugins>
71			<plugin>
72				<groupId>org.springframework.boot</groupId>
73				<artifactId>spring-boot-maven-plugin</artifactId>
74				<executions>
75					<execution>
76						<goals>
77							<goal>repackage</goal>
78						</goals>
79					</execution>
80				</executions>
81			</plugin>
82
83			<!-- OpenAPI generator Maven plugin -->
84			<plugin>
85				<groupId>org.openapitools</groupId>
86				<artifactId>openapi-generator-maven-plugin</artifactId>
87				<version>7.5.0</version>
88				<executions>
89					<execution>
90						<goals>
91							<goal>generate</goal>
92						</goals>
93						<configuration>
94							<inputSpec>${project.basedir}/src/main/resources/openapi.yml</inputSpec>
95							<generatorName>spring</generatorName>
96
97							<configOptions>
98								<apiPackage>code.api</apiPackage>
99								<modelPackage>code.model</modelPackage>
100								<useSpringBoot3>true</useSpringBoot3>
101
102								<!-- 我地可以用 delegatePattern -->
103								<delegatePattern>true</delegatePattern>
104
105								<!-- 或者用 interfaceOnly -->
106								<interfaceOnly>true</interfaceOnly>
107							</configOptions>
108						</configuration>
109					</execution>
110				</executions>
111			</plugin>
112		</plugins>
113	</build>
114</project>

註：

OpenAPI generator Maven plugin 提供兩種生成 Java model code 既方式。
- delegatePattern
- interfaceOnly

2.2 寫 Swagger/OpenAPI Specification

因為係 API-first 既開發方式，所以我地寫 Java code 之前要先寫 Swagger/OpenAPI Specification 檔案。

src/main/resources/openapi.yml：

1openapi: 3.0.0
2info:
3  version: 1.0.0
4  title: Spring-Boot-3-OpenAPI-Code-Gen-MVC-Demo
5  description: OpenAPI for Spring-Boot-3-OpenAPI-Code-Gen-MVC-Demo
6paths:
7  /users:
8    get:
9      operationId: getUsers
10      summary: Get all users
11      description: Get all users.
12      responses:
13        '200':
14          description: OK
15          content:
16            application/json:
17              schema:
18                type: array
19                items:
20                  $ref: '#/components/schemas/UserDto'
21    post:
22      operationId: createUser
23      summary: Create user by ID
24      description: Create a user of the given ID.
25      requestBody:
26        required: true
27        description: User object (JSON).
28        content:
29          application/json:
30            schema:
31              $ref: '#/components/schemas/UserDto'
32      responses:
33        '200':
34          description: OK
35          content:
36            application/json:
37              schema:
38                $ref: '#/components/schemas/UserDto'
39  /users/{userId}:
40    get:
41      operationId: getUser
42      summary: Get user by ID
43      description: Get a user of the given ID.
44      parameters:
45        - name: userId
46          in: path
47          required: true
48          description: User ID.
49          schema:
50            type : long
51      responses:
52        '200':
53          description: OK
54          content:
55            application/json:
56              schema:
57                $ref: '#/components/schemas/UserDto'
58    put:
59      operationId: updateUser
60      summary: Update user by ID
61      description: Update a user of the given ID.
62      parameters:
63        - name: userId
64          in: path
65          required: true
66          description: User ID.
67          schema:
68            type : long
69      requestBody:
70        required: true
71        description: User object (JSON).
72        content:
73          application/json:
74            schema:
75              $ref: '#/components/schemas/UserDto'
76      responses:
77        '200':
78          description: OK
79          content:
80            application/json:
81              schema:
82                $ref: '#/components/schemas/UserDto'
83    delete:
84      operationId: deleteUser
85      summary: Delete user by ID
86      description: Delete a user of the given ID.
87      parameters:
88        - name: userId
89          in: path
90          required: true
91          description: User ID.
92          schema:
93            type : long
94      responses:
95        '200':
96          description: OK
97          content:
98            application/json:
99              schema:
100                $ref: '#/components/schemas/UserDto'
101components:
102  schemas:
103    UserDto:
104      type: object
105      properties:
106        id:
107          type: long
108        firstName:
109          type: string
110        lastName:
111          type: string

2.3 寫 Java code

無論係 interfaceOnly 或者係 delegatePattern，都係用一樣既 main class。

MainApplication.java：

1@SpringBootApplication
2public class MainApplication {
3
4    public static void main(String[] args) {
5        SpringApplication.run(MainApplication.class, args);
6    }
7}

2.3.1 `interfaceOnly` 版本

Project structure：

src/main/java
- /code
  - MainApplication.java
  - UsersController.java
target/generated-sources/openapi/src/main/java（由 OpenAPI generator Maven plugin 生成）
- /code
  - /api
    - ApiUtil.java
    - UsersApi.java
  - /model
    - UserDto.java

UsersController.java：

1@Slf4j
2@RestController
3public class UsersController implements UsersApi {
4
5    @Override
6    public ResponseEntity<List<UserDto>> getUsers() {
7        log.info("getUsers");
8        return ResponseEntity.ok(Arrays.asList(randomUser(), randomUser()));
9    }
10
11    @Override
12    public ResponseEntity<UserDto> getUser(Long userId) {
13        log.info("getUser");
14        return ResponseEntity.ok(randomUser());
15    }
16
17    @Override
18    public ResponseEntity<UserDto> createUser(UserDto user) {
19        log.info("createUser");
20        return ResponseEntity.ok(user);
21    }
22
23    @Override
24    public ResponseEntity<UserDto> updateUser(Long userId, UserDto user) {
25        log.info("updateUser");
26        return ResponseEntity.ok(user);
27    }
28
29    @Override
30    public ResponseEntity<UserDto> deleteUser(Long userId) {
31        log.info("deleteUser");
32        return ResponseEntity.ok(randomUser());
33    }
34
35
36
37    private UserDto randomUser() {
38        final UserDto user = new UserDto();
39        user.setId(new Random().nextLong(100));
40        user.setFirstName(RandomStringUtils.randomAlphabetic(10));
41        user.setLastName(RandomStringUtils.randomAlphabetic(10));
42        return user;
43    }
44}

註：

UsersApi 係由 OpenAPI generator Maven plugin 生成既 Java interface。
UserDto 係由 OpenAPI generator Maven plugin 生成既 Java class。

2.3.2 `delegatePattern` 版本

Project structure：

src/main/java
- /code
  - MainApplication.java
  - UsersApiDelegateImpl.java
target/generated-sources/openapi/src/main/java（由 OpenAPI generator Maven plugin 生成）
- /code
  - /api
    - ApiUtil.java
    - UsersApi.java
    - UsersApiController.java
    - UsersApiDelegate.java
  - /model
    - UserDto.java
- /org（唔重要，因為我地唔會用裡面既野）
  - /openapitools
    - /configuration
      - HomeController.java
      - SpringDocConfiguration.java
    - OpenApiGeneratorApplication.java
    - RFC3339DateFormat.java

UsersApiDelegateImpl.java：

1@Slf4j
2@Component
3public class UsersApiDelegateImpl implements UsersApiDelegate {
4
5    @Override
6    public ResponseEntity<List<UserDto>> getUsers() {
7        log.info("getUsers");
8        return ResponseEntity.ok(Arrays.asList(randomUser(), randomUser()));
9    }
10
11    @Override
12    public ResponseEntity<UserDto> getUser(Long userId) {
13        log.info("getUser");
14        return ResponseEntity.ok(randomUser());
15    }
16
17    @Override
18    public ResponseEntity<UserDto> createUser(UserDto user) {
19        log.info("createUser");
20        return ResponseEntity.ok(user);
21    }
22
23    @Override
24    public ResponseEntity<UserDto> updateUser(Long userId, UserDto user) {
25        log.info("updateUser");
26        return ResponseEntity.ok(user);
27    }
28
29    @Override
30    public ResponseEntity<UserDto> deleteUser(Long userId) {
31        log.info("deleteUser");
32        return ResponseEntity.ok(randomUser());
33    }
34
35
36
37    private UserDto randomUser() {
38        final UserDto user = new UserDto();
39        user.setId(new Random().nextLong(100));
40        user.setFirstName(RandomStringUtils.randomAlphabetic(10));
41        user.setLastName(RandomStringUtils.randomAlphabetic(10));
42        return user;
43    }
44}

註：

UsersApiDelegate 係由 OpenAPI generator Maven plugin 生成既 Java interface。
UserDto 係由 OpenAPI generator Maven plugin 生成既 Java class。

2.4 Application 配置

如果想改變 Swagger UI 既 endpoint paths，可以覆蓋默認既配置：

springdoc:
  swagger-ui.path: "/api/swagger/swagger-ui.html" # 默認：/swagger-ui.html
  api-docs.path: "/api/swagger/v3/api-docs" # 默認：/v3/api-docs

3 測試

3.1 cURL

列出所有 users：

curl -X GET http://localhost:8080/users

列出一個 user：

curl -X GET http://localhost:8080/users/1234

新增一個 user：

curl -X POST http://localhost:8080/users -H "Content-Type: application/json" -d "{ \"id\": 123, \"firstName\": \"Michael\", \"lastName\": \"Chung\" }"

更新一個 user：

curl -X PUT http://localhost:8080/users/1234 -H "Content-Type: application/json" -d "{ \"id\": 123, \"firstName\": \"Michael\", \"lastName\": \"Chung\" }"

刪除一個 user：

curl -X DELETE http://localhost:8080/users/1234

3.2 Swagger UI

喺瀏覽器打開 http://localhost:8080/swagger-ui.html。
佢會自動 redirect 去 http://localhost:8080/swagger-ui/index.html。
打開其中一個 API。
撳「Test it out」。
輸入必填既 request 資訊（如有）。
- Path variables
- Request parameters
- Request body
撳「Execute」。

3.3 取得 OpenAPI Specification 檔案

Swagger UI 亦會 expose 以下既 HTTP endpoints 畀我地拎到我地 microservice 既 OpenAPI Specification 檔案，我地只需要喺瀏覽器打開以下既 URLs：

格式	URL
JSON	http://localhost:8080/v3/api-docs
YAML	http://localhost:8080/v3/api-docs.yaml

4 筆記

4.1 OpenAPI generator Maven plugin 配置

`configOptions` 配置	解釋
`apiPackage`	喺邊個 Java package 去生成 Java API interfaces/classes。
`modelPackage`	喺邊個 Java package 去生成 Java model classes。
`useSpringBoot3`	用黎控制生成既項目以及 Java code 係咪 Spring Boot `3.x`。如果係既話，會生成 `jakarta` 而唔係 `javax` package 既 import statements。
`interfaceOnly`	會生成 Java API interface 畀我地 override 佢既所有 method body。
`delegatePattern`	相比起 `interfaceOnly`，會生成額外既 Spring controller class（`@Controller`）以及叫 delegate 既 Java interface 畀我地 override 佢既所有 method body。

4.1.1 OpenAPI generator Maven plugin - `interfaceOnly`

會生成 Java API interface。
- 每個 method 都會有 @RequestMapping，return type 係 ResponseEntity。
- 我地要 override 佢既所有 method body，否則默認會 return HttpStatus.NOT_IMPLEMENTED。

4.1.2 OpenAPI generator Maven plugin - `delegatePattern`

會生成叫 delegate 既 Java interface。
- 我地要 override 佢既所有 method body，否則默認會 return HttpStatus.NOT_IMPLEMENTED。
會生成 Java API interface。
- 每個 method 都會有 @RequestMapping，return type 係 ResponseEntity，默認會 return delegate 既 method 既 result。
會生成 Spring controller class。
- Class level 會有：
  - @Controller
  - @RequestMapping("${openapi.xxx.base-path:}")（xxx 黎自個 OpenAPI Specification 既 info.title field）。
- 佢 implement 左個 Java API interface，所以 Spring Boot 就會 expose 黎自個 Java API interface 既 @RequestMapping 既 HTTP endpoints。
會生成 main class 以及其他唔係太有用既 Java classes。

4.2 OpenAPI Specification fields

OpenAPI Specification field	用途
`openapi`	OpenAPI Specification 既版本號碼。
`paths`	每個 expose 既 HTTP endpoint path 既配置。
HTTP endpoint path（e.g. `/users`）	裡面係佢支援既每個 HTTP request method 既配置。
`operationId`（e.g. `getUsers`）	會影響 reference 呢個 API operation 既 ID，對 OpenAPI generator Maven plugin 黎講會影響生成出黎既 Java method name。
`schema`	Data type，可以係 OpenAPI 本身支援 basic data types，可以用 `$ref` 黎 reference `components.schemas` 裡面既自定義 data types，亦可以係 array（再用 `items` field 表示 array elements 既 data type）。
`requestBody`	HTTP request body 既配置。
`parameters`	HTTP request body 以外既配置，例如 path variables（要用 `in: path`）、request parameters（亦叫 query strings，要用 `in: query`）、request headers（要用 `in: header`）。
`response`	HTTP response 每個支援既 HTTP status code 既配置。
`components.schemas`	自定義既 data types，對 OpenAPI generator Maven plugin 黎講會影響生成出黎既 Java model classes。

5 參考資料

6330 1333

michaelboyboy@gmail.com

www.linkedin.com/in/mickchung

Developed with React, Bootstrap and Next.js.
